DSH Series
DSH Double Screw Conical Mixer
Conical mixer using compound screw rotation and revolution for fast, uniform powder, granule, and liquid mixing.
- Available in single-screw, double-screw, or triple-screw configurations
- Optional flying knives and spray atomization
- Manual or pneumatic discharge valve options
- Screw ribbon variant available for lift-and-fold mixing
Mixing Equipment16
Standard Double-Screw Models
0.1-30 m³
Total Volume Range
1 / 2 / 3
Screw Configuration Options
Specifications
Technical parameters
Double-Screw Type
| Model | Total Volume (m³) | Load Factor | Equipped Power (kW) | Operating Conditions | Overall Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| DSH-0.1 | 0.1 | ≤0.6 | 1.5 | Room temp/pressure, dust seal | 1569×702 | 250 |
| DSH-0.3 | 0.3 | ≤0.6 | 2.2 | Room temp/pressure, dust seal | 1929×920 | 550 |
| DSH-0.5 | 0.5 | ≤0.6 | 3 | Room temp/pressure, dust seal | 2322×1124 | 660 |
| DSH-1.0 | 1.0 | ≤0.6 | 4 | Room temp/pressure, dust seal | 2869×1480 | 1200 |
| DSH-1.5 | 1.5 | ≤0.6 | 5.5 | Room temp/pressure, dust seal | 3140×1633 | 1350 |
| DSH-2.0 | 2.0 | ≤0.6 | 5.5 | Room temp/pressure, dust seal | 3489×1816 | 1500 |
| DSH-3.0 | 3.0 | ≤0.6 | 7.5 | Room temp/pressure, dust seal | 3747×2210 | 2300 |
| DSH-4.0 | 4.0 | ≤0.6 | 11 | Room temp/pressure, dust seal | 4362×2280 | 2520 |
| DSH-5.0 | 5.0 | ≤0.6 | 15 | Room temp/pressure, dust seal | 4576×2402 | 3000 |
| DSH-6.0 | 6.0 | ≤0.6 | 15 | Room temp/pressure, dust seal | 4900×2582 | 3150 |
| DSH-8.0 | 8.0 | ≤0.6 | 18.5 | Room temp/pressure, dust seal | 5406×2805 | 4500 |
| DSH-10 | 10 | ≤0.6 | 20.7 | Room temp/pressure, dust seal | 5795×3018 | 5500 |
| DSH-15 | 15 | ≤0.6 | 24.2 | Room temp/pressure, dust seal | 6475×3450 | 6600 |
| DSH-20 | 20 | ≤0.6 | 41 | Room temp/pressure, dust seal | 7535×3805 | 7000 |
| DSH-25 | 25 | ≤0.6 | 41 | Room temp/pressure, dust seal | 7995×4078 | 8500 |
| DSH-30 | 30 | ≤0.6 | 52.5 | Room temp/pressure, dust seal | 8385×4330 | 9200 |
Screw Ribbon Mixer Variant
| Model | Total Volume (m³) | Load Factor | Equipped Power (kW) | Operating Conditions | Overall Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| DSH-0.3 | 0.3 | ≤0.6 | 2.2 | Room temp/pressure, dust seal | 1929×920 | 320 |
| DSH-0.5 | 0.5 | ≤0.6 | 4 | Room temp/pressure, dust seal | 2322×1124 | 410 |
| DSH-1.0 | 1.0 | ≤0.6 | 7.5 | Room temp/pressure, dust seal | 2869×1480 | 900 |
| DSH-1.5 | 1.5 | ≤0.6 | 11 | Room temp/pressure, dust seal | 3140×1633 | 1200 |
| DSH-2.0 | 2.0 | ≤0.6 | 11 | Room temp/pressure, dust seal | 3489×1816 | 1300 |
Related equipment
VHJ SeriesMixing Equipment
VHJ V-Type Mixer
Mirror-polished stainless steel V-type mixer for dry powder and granular blending with up to 99% uniformity.
View specifications
DZG SeriesDrying Equipment
DZG Single Cone Vacuum Ribbon Dryer
Vertical vacuum dryer with an internal heated ribbon that combines drying and mixing in a single operation.
View specifications
ZPG SeriesDrying Equipment
ZPG Vacuum Rake Dryer
Horizontal batch vacuum dryer with a scraper-blade rake for pastes, paste-like, and powdery materials.
View specificationsEngineering Advantages
Built for demanding vacuum drying duty
Four Combined Mixing Motions
Circumferential flow, spiral rise, radial discharge, and gravity descent combine inside the cone to generate convection, shearing, and diffusion simultaneously.
Rapid, Uniform Mixing
Compound screw rotation and revolution mix powder-powder, powder-granule, powder-liquid, and liquid-liquid combinations quickly and evenly.
Flexible Screw Configurations
Choose single-screw, double-screw, or triple-screw arrangements to match mixing intensity and throughput to your process.
Optional Flying Knives & Spray Atomization
Add flying knives to break up agglomerates or spray atomization nozzles for liquid addition, tailoring the mixer to special process requirements.
Manual or Pneumatic Discharge
Select a manual or pneumatic discharge valve to match your operating environment and automation level.
Screw Ribbon Variant Available
A screw ribbon configuration pairs a central lifting screw with an outer ribbon rotating at the same speed, for materials that benefit from a lift-and-fold action.
Scalable Motor Power
Motor power can be increased beyond standard specification for heavy-duty or high-viscosity material handling.
Sixteen Standard Sizes
Total volumes from 0.1 m³ to 30 m³ across sixteen standard double-screw models make it straightforward to match capacity to batch size.
Working Principle
The vacuum rake drying cycle
- STEP 01
Charge Components
Powder, granule, or liquid components are charged into the conical vessel through the top feed port.
- STEP 02
Screw Rotation & Revolution
The screws simultaneously rotate on their own axis and revolve around the cone, generating compound motion within the material bed.
- STEP 03
Compound Motion Mixing
Circumferential flow, spiral rise, radial discharge by centrifugal force, and gravity-driven descent combine to produce convection, shearing, and diffusion.
- STEP 04
Optional Flying Knife or Spray Pass
Where fitted, flying knives break up agglomerates or spray atomization introduces liquid, integrated into the same mixing cycle.
- STEP 05
Discharge Blend
Once target uniformity is reached, the manual or pneumatic discharge valve releases the finished blend from the cone base.
Structure Diagram
Inside the DSH double screw conical mixer

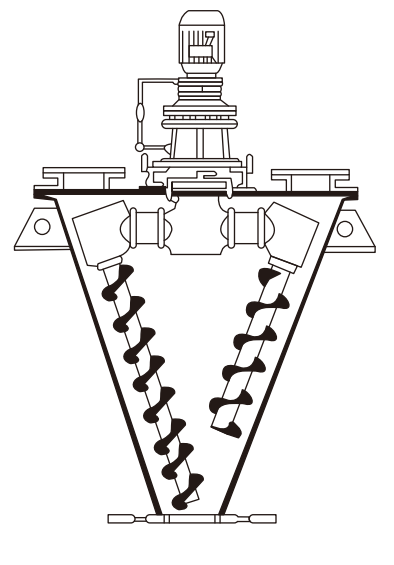

Cross-section of the DSH conical mixer showing the twin orbiting screws inside the cone body, the drive assembly at top, and the discharge valve at the cone base.
